Air Suspension Division

PRODUCTS

Bus Suspension

Medium Commercial Vehicles

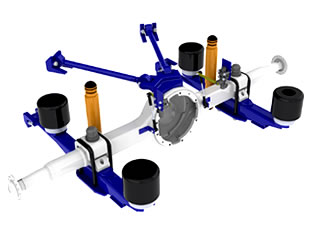

FTS 6 – SERIES

FTS 6 – SERIES Type: Trailing Arm Suspension

Suspension Capacity

  • Axle Rating : 5 to 6.5 tons
  • Air Spring Volume : 13 Ltrs
  • Suspension Stroke : 100/120 mm

Applications

  • Intercity Bus
  • Motor Home
  • Mobile Hospitals

Features and Benefits

  • Simple in Construction
  • Minimum Wear Parts
  • Compact Package Design
  • Light Weight with No Sacrifice in Strength
  • Excellent Roll Stability
  • Low Maintenance

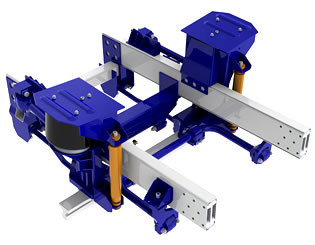

FTS 8 –5 SERIES

FTS 8 –5 SERIES Type: 5 Link Suspension

Suspension Capacity

  • Axle Rating : 6 to 8 tons
  • Air Spring Volume : 11.5 Ltrs
  • Suspension Stroke : 80/100 mm

Applications

  • Rear Engine Low Floor Bus
  • City Buses

Features and Benefits

  • 5 Link Suspensions
  • Heavy Duty and High Ground Clearances
  • High Roll Stability
  • Best Suitable for low floor buses
  • Simple in Design

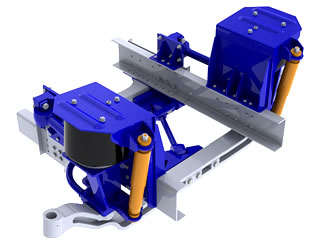

FTS 8 – 4 SERIES

FTS 8 –4 SERIES Type: 4 Link Suspension

Suspension Capacity

  • Axle Rating : 6 to 8 tons
  • Air Spring Volume : 11.5 Ltrs
  • Suspension Stroke : 80/100 mm

Applications

  • Rear Engine Low floor Bus
  • City Buses

Features and Benefits

  • Tuned Shock absorber for good comfort
  • 4 Link Suspension
  • High Roll Stability
  • Best Suitable for Low floor Buses
  • Simple in Design
  • Minimum Wear Parts

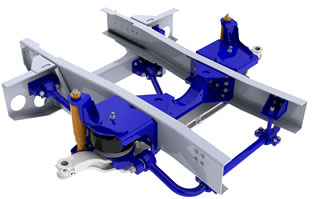

FTS 8 – 4 SERIES LF

FTS 8 – 4 SERIES LF* Type: 4 Link Suspension

Suspension Capacity

  • Axle Rating : 6 to 8 tons
  • Air Spring Volume : 11.5 Ltrs
  • Suspension Stroke : 80/100 mm

Applications

  • Front Engine Low floor Bus
  • City Buses

Features and Benefits

  • Specially Packaged for front engine low floor bus
  • 4 Link Suspension
  • Simple in Design
  • Minimum Wear Parts
  • Excellent Roll Stability
  • Heavy Duty bushing
  • *Patent Applied

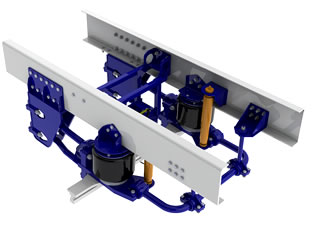

FTS 8 – 5 SERIES ND

FTS 8 – 5 SERIES ND Type: 5 Link Suspension

Suspension Capacity

  • Axle Rating : 6 to 8 tons
  • Air Spring Volume : 12.5 Ltrs
  • Suspension Stroke : 120/120 mm

Applications

  • Rear Engine Intercity bus
  • Multi Axle Bus

Features and Benefits

  • Tuned Shock absorber for good comfort.
  • High Articulation
  • 5 Link Suspension
  • High Roll Stability
  • Best Suitable for low floor buses
  • Simple in Design
  • Improved stability and consistent vehicle control
  • Minimum Wear Parts

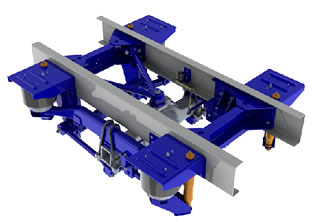

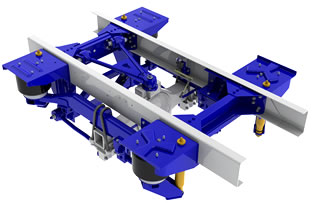

RLS 11 – OL SERIES

RLS 11 – OL SERIES Type: Sub frame type Suspension Sub Type: V link

Suspension Capacity

  • Axle Rating : 10.2 to 11.5 tons
  • Air Spring Volume : 12.5 Ltrs
  • Suspension Stroke : 100/100 mm

Applications

  • Intercity Bus
  • Staff Bus
  • Tourist Bus

Features and Benefits

  • V- Link Suspension
  • Excellent Roll Stability
  • No Lubrication Requirement
  • Widely Used Design
  • Easily Retrofittable

RLS 12 – O SERIES

RLS 12 – O SERIES Type: Sub frame type Suspension Sub Type: V link

Suspension Capacity

  • Axle Rating : 10.2 to 11.5 tons
  • Air Spring Volume : 12.5 Ltrs
  • Suspension Stroke : 100/100 mm

Applications

  • Intercity Bus
  • Staff Bus
  • Tourist Bus
  • Sleeper Coach

Features and Benefits

  • High Articulation
  • Reduced Maintenance with Heavy Duty bushings
  • No Lubrication Requirement
  • V- Link Suspension
  • Minimum Wear Parts
  • Designed for higher horse power buses
  • High Speed Cornering Stability

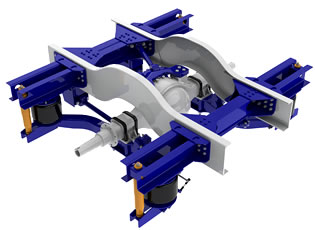

RLS 12 – U SERIES

RLS 12 – U SERIES Type: Cow Horn type Suspension Sub Type: 4 link

Suspension Capacity

  • Axle Rating : 10.2 to 11.5 tons
  • Air Spring Volume : 11.5 Ltrs
  • Suspension Stroke : 70/100 mm

Applications

  • Ultra low floor bus
  • Airport Shuttle Service

Features and Benefits

  • Durable Suspension design maximizes pay load capacity
  • Adjustable Axle Alignment
  • Compact Package design for low floor bus
  • Fewer components , easy assembly
  • 4 Link Suspension
  • Over Slung Design

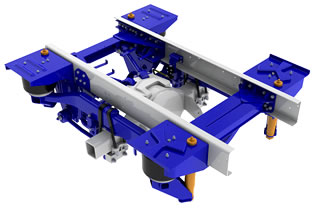

RLS 11.5 – ULX SERIES

RLS 11.5 – ULX SERIES Type: Sub frame type Suspension Sub Type: 4 link

Suspension Capacity

  • Axle Rating : 10.2 to 11.5 tons
  • Air Spring Volume : 11.5 Ltrs
  • Suspension Stroke : 100/100 mm

Applications

  • Intercity Bus
  • Staff Bus
  • Tourist Bus
  • Sleeper Coach

Features and Benefits

  • High Articulation
  • Reduced Maintenance with Heavy Duty bushings
  • No Lubrication Requirement
  • V- Link Suspension
  • Minimum Wear Parts
  • Designed for higher horse power buses
  • High Speed Cornering Stability

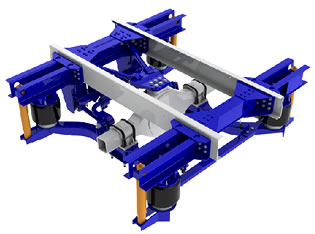

RLS 12 – HK SERIES

RLS 12 – HK SERIES Type: Cow Horn type Suspension Sub Type: 4 link

Suspension Capacity

  • Axle Rating : 10.2 to 11.5 tons
  • Air Spring Volume : 13.5 Ltrs
  • Suspension Stroke : 120/120 mm

Applications

  • Intercity Luxury Bus
  • Tourist Bus

Features and Benefits

  • Reduced Maintenance
  • Suitable for high capacity intercity bus
  • No Lubrication Requirement
  • Minimum Wear Parts
  • Excellent Roll Stability
  • 4 Link Design
  • Suitable for High Speed Vehicle

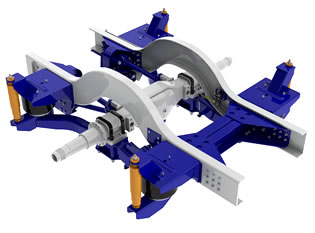

RLS 12 – IL SERIES

RLS 12 – IL SERIES Type: Cow Horn type Suspension Sub Type: Inverted link

Suspension Capacity

  • Axle Rating : 10.2 to 11.5 tons
  • Air Spring Volume : 11.5 Ltrs
  • Suspension Stroke : 70/80 mm

Applications

  • Front Engine Low Floor Bus

Features and Benefits

  • Specially Packaged for front Engine low floor bus
  • 4 Link Suspension – Inverted type
  • Suitable for high capacity intercity bus
  • No Lubrication Requirement
  • Wider Air Spring track for better roll stability
  • Heavy Duty bushing

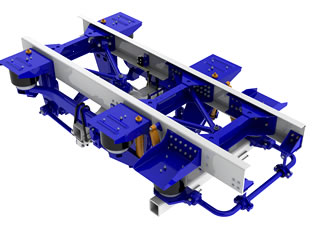

RLS 16 – MAB SERIES

RLS 16 – MAB SERIES Type: Multi Axle type Suspension

Suspension Capacity

  • Axle Rating : 16 tons
  • Air Spring Volume : 12.5 Ltrs
  • Suspension Stroke : 100/100 mm

Applications

  • Front Engine multi axle luxury Bus

Features and Benefits

  • Durability and Strength through advanced technology
  • Suitable for high capacity intercity bus
  • No Lubrication requirement
  • Fewer Components , Easy Assembly
  • Minimum Wear parts
  • Excellent Roll Stability

Light Commercial Vehicle

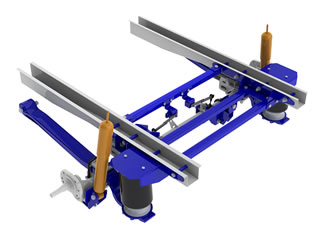

RTS 1.5 – Z SERIES

RTS 1.5 – Z SERIES

Suspension Capacity

  • Axle Rating : 1300 kg
  • Air Spring Volume : 3.5 Ltrs
  • Suspension Stroke : 75/85 mm

Applications

  • Tourist Van
  • School Van
  • Staff Bus
  • Ambulance

Features and Benefits

  • Simple in Construction
  • Minimum Wear Parts
  • Compact Package Design
  • Excellent Roll Stability
  • Low Maintenance

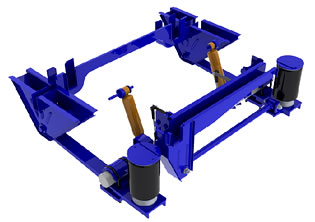

RTS 2 – U SERIES

RTS 2 – U SERIES

Suspension Capacity

  • Axle Rating : 2300 Kgs
  • Air Spring Volume : 3.5 Ltrs
  • Suspension Stroke : 90/90 mm

Applications

  • Tourist Van
  • School van
  • Staff Bus
  • Ambulance
  • Caravan

Features and Benefits

  • High Articulation
  • Reduced Maintenance with fewer bushings
  • No Lubrication requirement
  • Minimum Wear Parts
  • Light Weight with no Sacrifice in Strength
  • Excellent roll Stability

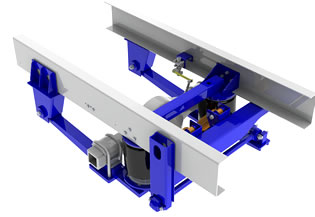

RTS 6 – U SERIES

RTS 6 – U SERIES

Suspension Capacity

  • Axle Rating : 5000 Kgs - 6000 Kgs
  • Air Spring Volume : 10.5 Ltrs
  • Suspension Stroke : 85/85 mm

Applications

  • School Bus
  • Staff Bus
  • Tourist Bus

Features and Benefits

  • High Articulation
  • No Lubrication requirement
  • Minimum Wear Parts
  • High Speed Cornering Stability
  • Improved ride over OEM Leaf Spring Suspension
  • Improved roll Stiffness

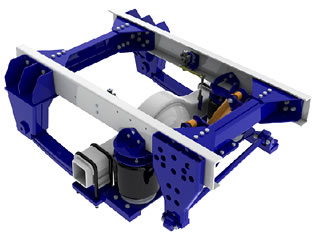

RTS 6 – U SERIES HD

RTS 6 – U SERIES HD

Suspension Capacity

  • Axle Rating : 6000 Kgs - 7000 Kgs
  • Air Spring Volume : 13 Ltrs
  • Suspension Stroke : 100/100 mm

Applications

  • Tourist Bus
  • School Bus
  • Mobile hospitals
  • Caravan

Features and Benefits

  • Simple in Construction
  • Durable Suspension Design. Maximizes pay load capacity
  • Minimum Wear Parts
  • Fewer components, easy assembly
  • Compact package design
  • Light weight with no sacrifice in strength
  • Excellent Roll Stability

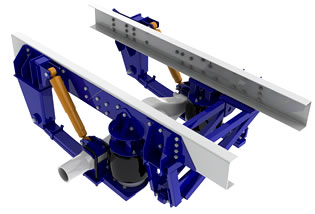

RTS 6 – U SERIES HK

RTS 6 – U SERIES HK

Suspension Capacity

  • Axle Rating : 6000 Kgs - 7000 Kgs
  • Air Spring Volume : 13.5 Ltrs
  • Suspension Stroke : 90/100 mm

Applications

  • Tourist Bus
  • Intercity Bus
  • Caravan

Features and Benefits

  • Suitable for High Deck Bus
  • Truss Bar Design
  • High Speed Cornering Stability
  • Maximizes payload capacity
  • Minimum Wear parts
  • Fewer Components , easy assembly
  • Excellent Roll Stability

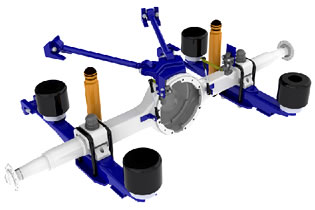

RTS 8 – U SERIES

RTS 8 – U SERIES

Suspension Capacity

  • Axle Rating : 8000 Kgs
  • Air Spring Volume : 9 Ltrs
  • Suspension Stroke : 70 /80 mm

Applications

  • Intercity Bus
  • Motor Home
  • Mobile hospitals

Features and Benefits

  • Simple in Construction
  • Compact package design
  • Light weight with no sacrifice in strength
  • Excellent Roll Stability
  • Low Maintenance

Truck Suspension

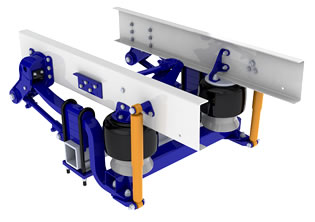

Truck and Tractor Suspension

TRUCK AND TRACTOR SUSPENSION Type: 102 AR

Applications

  • Glass Carrier
  • White Goods Carrier
  • Home Appliance Carrier
  • Car,Bike Carrier
  • Egg Carrier

Specification

  • Axle Rating: 8000 Kgs – 10000 Kgs Single Axle
  • Axle Rating: 16000 Kgs – 20000 Kgs Tandem Axle
  • Suspension Stroke : 63 / 76 mm

FEATURES

  • Unique Air Spring and Spring beam combination for ultimate performance and Ride Quality
  • Excellent Roll Stability
  • Low Maintenance
  • Outboard Mounted Shock Absorbers
  • Axle Vertical travel 76mm up , 63 mm down
  • Close Tolerance machined castings and high Strength U-bolts create durable , trouble –free axle attachment
  • Cast Adjustable torque arms for ease alignment
  • Heavy Duty High Ground Clearance shock absorbers available

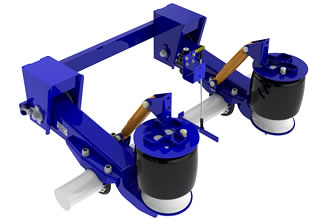

TRAILER SUSPENSION

TRAILER SUSPENSION Type:23 AR, 25 AR,30 AR

Applications

  • Vans and Reefers
  • Flat desks
  • Platforms
  • Tankers
  • Forestry
  • Drop Platforms
  • Lowbeds
  • Steel haulers
  • Car Carriers
  • Specialty

Specification

  • Axle Rating: 11000 Kgs – 14000 Kgs
  • Suspension Stroke : 100 / 100 mm

FEATURES

  • 165mm to 508 mm mounting heights
  • Available in ground capabilities from 11000 kgs to 14000Kgs/axle
  • Weld on Bolt on hangers
  • Up to 200 mm of axle travel
  • Lightweight with no sacrifice in strength
  • Top Mount and Underslung available
  • Huck Bolted and Pre assembled option available
  • Lift able (Several Lift Mechanisms available)
  • REY-ALIGN “TRUE” one Person Alignment 6” pivot bushing
  • Increased beam to axle surface area.
  • Wider Axle connection
  • Twice the support at axle connection
  • Re alignment requires little / no weld cleaning
  • Industry standard components
  • Self Steer Applications available
  • Slider available
  • Pre Assembly with axles available

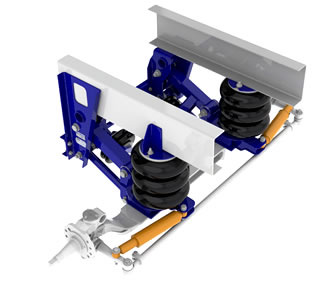

LIFT AXLE SUSPENSION

LIFT AXLE SUSPENSION Type: L120 W

Applications

  • Block Haulers
  • Construction Vehicles
  • Dump Trucks
  • Refuse Vehicles
  • Straight Trucks
  • Transit Mixers

Specification

  • Axle Rating: 6000 Kgs – 7000 Kgs
  • Lift Stroke 240 mm

FEATURES

  • Light Weight , Low Maintenance Suspension design maximizes payload capacity and service Life
  • Parallelogram with positive dampening prevents wheels shimmy during operation and reduces tire wear
  • Compact package design measure 620mm from the front of the hanger to the center of the axle
  • Low profile hangers that extend 50mm outside of the frame rail
  • Unitized to reduce installation time and cost
  • Accommodates chassis frame heights from 635mm to 990mm
  • 330mm total axle travel available
  • Automatic lift in reverse air controls
  • Force steer option available

Controls and Specialty Products

  • Leveling Valve
  • Electronic Controlled Air Suspension
  • Electronic Kneeling System
